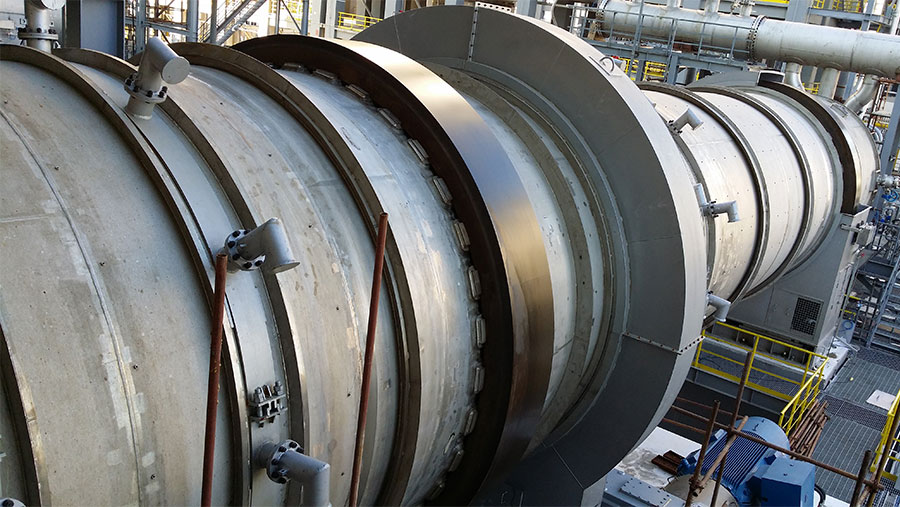

Industrial Rotary Dryer Machine

CIC have accumulated decades of experience in the production of industrial rotary dryer machine, through continuous improvement, research and development, CIC rotary dryer manufacturer are looking for breakthroughs according to the site and operation conditions to make our dryer have the following advantages:

  • High degree of mechanization and productivity;

  • Low energy consumption, with low resistance generated when the fluid goes through the shell;

  • Strong adaptability for the various kinds of materials;

  • Stable and convenient heavy equipment and machinery operation, low costs, and great drying uniformity.


Contact us

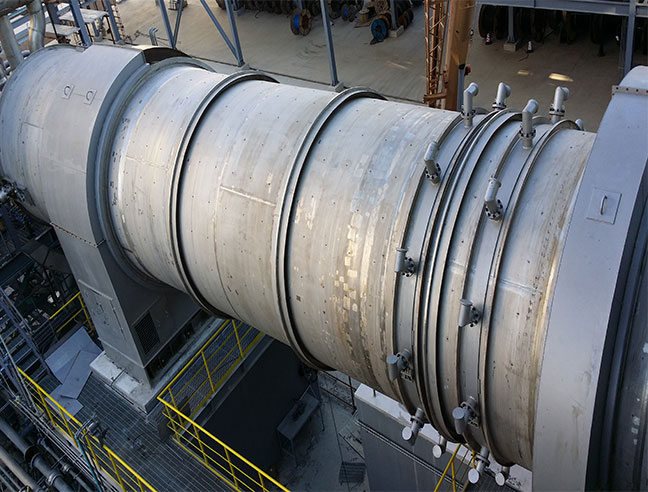

Introduction of Rotary Dryer

Rotary dryer is a kind of highly efficient, stable and reliable heating drying equipment, and its performance is better than tube bundle rotary dryer, blade rotary dryer. Drying machine adopts "center-adjusting roller device", making the cooperation of roller and rolling ring always show linear contact which greatly reduces the wear and power consumption. This machinery is applied in the materials like coal slurry, mud, felted gypsum, high-moisture swell soil, electroplate mud and so on.


Principle of Rotary Dryer

Principle of Rotary Dryer


The moist material enters the dryer from one end. With the stirring of the uniformly distributed lifting blade inside the shell, the material disperses equably inside the dryer. In this way, the material is fully exposed to the flowing hot air, and the drying process is quickened. During the drying process, the material is moved manageably to the other end of the dryer under the effect of both the gradient and the hot air. Thus the finished product is produced. The rotary dryer is mainly applied in the drying of the material, which requires low-temperature drying and mass continuous drying, for example, the drying of large particles and large specific gravity, such as the ore, coal, metal power, blast-furnace slag, phosphate fertilizer, thiamine, and so on, in the industries of chemical, rotary dryer for minerals, metallurgy and etc and the drying of powdery and granular material of special requirements, such as the HP foaming agent, vinasse slag, light calcium carbonate, activated clay, magnetic powder, graphite, herb residue, etc.


Technical Parameter of Rotary Dryer

Specification(m)

Volume(m³)

Capacity(t/h)

Installation Inclination(%)

Max. Inlet Gas Temperature(℃)

Main Motor(kw)

Total Weight(t)

Φ1.2×8.0

9.0

1.9-2.4

3-5

700-800

7.5

9

Φ1.2×10

11.3

2.4-3.0

3-5

700-800

7.5

11

Φ1.5×12

21.2

4.5-5.7

3-5

700-800

15

18.5

Φ1.5×14

24.7

5.3-6.6

3-5

700-800

15

19.7

Φ1.5×15

26.5

5.7-7.1

3-5

700-800

15

20.5

Φ1.8×12

30.5

6.5-8.1

3-5

700-800

18.5

21.5

Φ1.8×14

35.6

7.6-9.5

3-5

700-800

18.5

23

Φ2.2×12

45.6

9.7-12.2

3-5

700-800

22

33.5

Φ2.2×14

53.2

11.4-14.2

3-5

700-800

22

36

Φ2.2×16

60.8

13.0-16.2

3-5

700-800

22

38

Φ2.4×14

63.3

13.5-16.9

3-5

700-800

37

45

Φ2.4×18

81.4

17.4-21.7

3-5

700-800

37

49

Φ2.4×20

90.4

19.3-24.1

3-5

700-800

45

54

Φ2.4×22

99.5

21.2-26.5

3-5

700-800

45

58

Φ2.6×24

127.4

27.4-34.0

3-5

700-800

55

73

Φ3.0×20

141.3

30.1-37.7

3-5

700-800

75

85

Φ3.0×25

176.6

37.7-47.1

3-5

700-800

75

95

Φ3.2×25

201

42.9-53.6

3-5

700-800

90

110

Φ3.6×28

285

60.8-76.0

3-5

700-800

160

135



Maintenance of Drum Dryer

Maintenance of Drum Dryer


1. Check the air source triplet before starting the drum dryer every time. When the oil level is insufficient, add lubricating oil and drain the water.

2. Every time before using the dryer, the cotton wadding filter must be cleaned. If the filter is blocked, the air volume will be reduced, resulting in slow drying or not drying, and waste of energy.

3. The most important point of the drum dryer equipment is the finished drying material. Carefully check the moisture content of the material after drying. According to the moisture content of the material after drying, increase or reduce the heat supply. This is the simplest control operation of the drum dryer equipment, and it is also the most important.

4. The setting of drying temperature should be set correctly according to the drying conditions of the material itself. When drying the material, the dryer first preheat to 80 degrees, then turn off the gas and cool the air for 20 minutes.

5. If the rolling ring of the drum dryer swings on the cylinder, this phenomenon is because the concave joint side of the rolling ring is not tightened. The solution is to tighten it a little, and pay attention not to be too tight, otherwise, it may prone to accidents is prone to accidents.

6. At the end of the drum dryer operation, please turn the temperature control knob to the position of 0 degrees to reduce improper startup and prolong the service life of the solenoid valve.


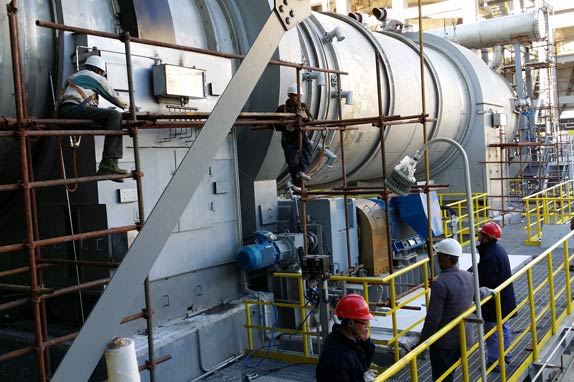

Case of Rotary Dryer

Rotary Dryer for Indonesian customer

Speicification : Φ2.336×14m

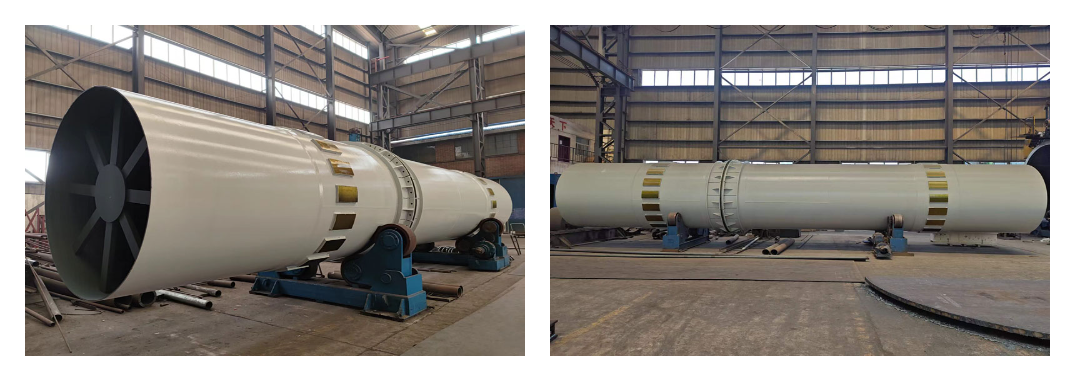

To be delivery

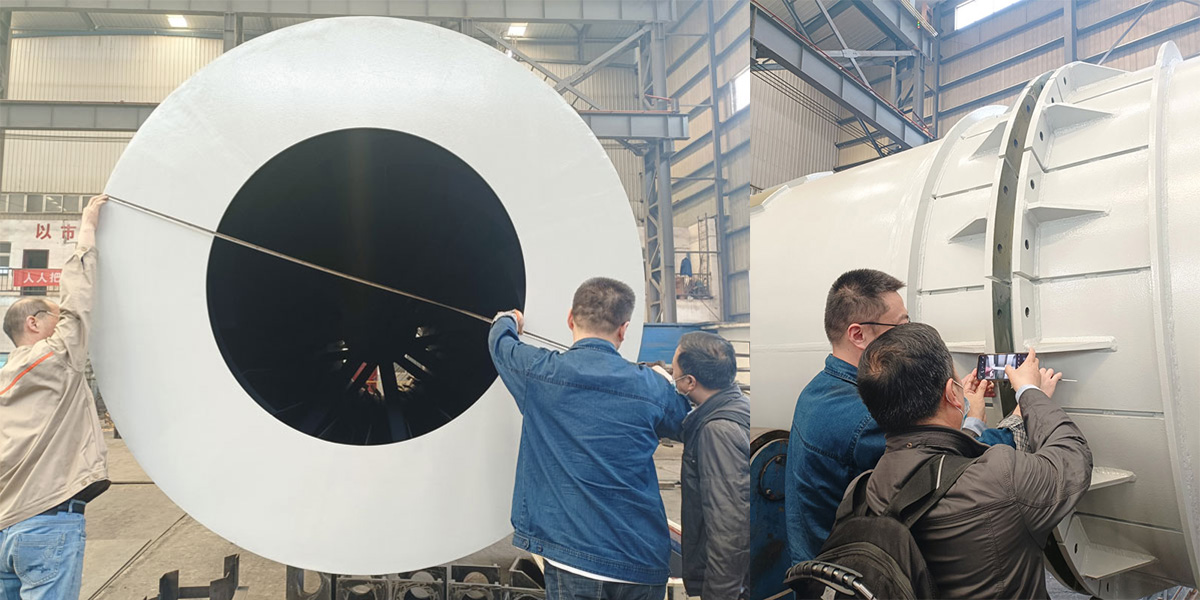

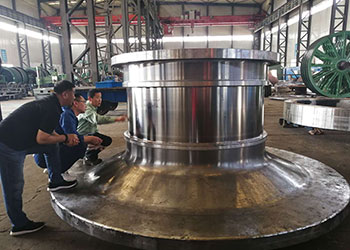

Inspection from TUV

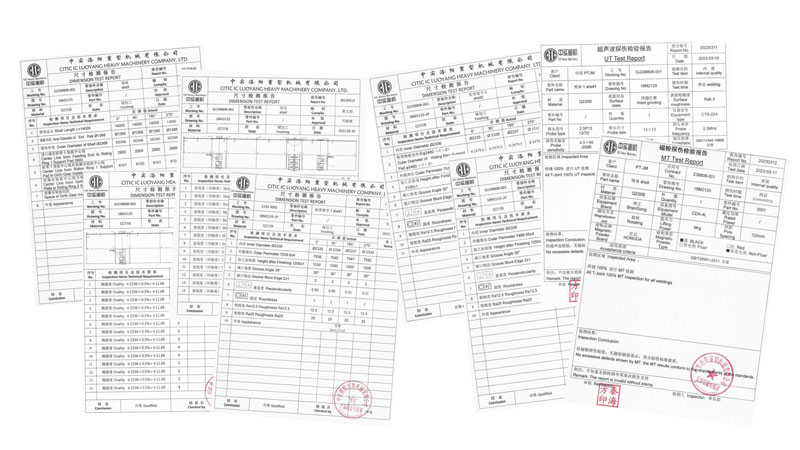

Inspection report





Industrial Rotary Dryer Machine Application
